		Dampeners
Model Name		10P□	10A□ ･ 10S□	15P□ ･ 15V□	15A□ ･ 15S□
Connection Size	Liquid	⅜”		½”
Max Solid Size		3mm or less		5mm or less
Supply Air Pressure Range		0 ~ 0.7MPa*	0 ~ 0.7MPa	0 ~ 0.7MPa*	0 ~ 0.7MPa
Max Discharge Pressure		0.7MPa		0.7MPa
Materials	Wetted Body	PP	Aluminium, SUS	PP, CFPVDF	Aluminium, SUS
Materials	Diaphragm	CR, NBR, EPDM, TPEE, TPO, PTFE, One-piece PTFE		CR, NBR, EPDM, TPEE, TPO, PTFE, One-piece PTFE

*The maximum operating pressure depends on the liquid temperature. Please refer to operation manuals.

		Dampeners
Model Name		25G□ ･ 25V□	25A□ ･ 25S□	40G□ ･ 40V□	40A□ ･ 40S□	40AT･AW 40ST･SW
Connection Size	Liquid	1″		1½”
Max Solid Size		8mm or less		12mm or less
Supply Air Pressure Range		0 ~ 0.7MPa*	0 ~ 0.7MPa	0 ~ 0.7MPa*	0 ~ 0.85MPa	0 ~ 0.7MPa
Max Discharge Pressure		0.7MPa		0.7MPa	0.85MPa	0.7MPa
Materials	Wetted Body	Glass Filled PP, CFPVDF	Aluminium, SUS	Glass Filled PP, CFPVDF	Aluminium, SUS	Aluminium, SUS
Materials	Diaphragm	CR, NBR, EPDM, FKM, TPEE, TPO, PTFE, One-piece PTFE		CR, NBR, EPDM, FKM, TPEE, TPO		PTFE, One-piece PTFE

*The maximum operating pressure depends on the liquid temperature. Please refer to operation manuals.

		Dampeners
Model Name		50G□ ･ 50V□	50A□ ･ 50S□	50AT･AW 50ST･SW	10HT	25HT	40HT
Connection Size	Liquid	2″			⅜”	¾”	1″
Max Solid Size		15mm or less			1mm or less	3mm or less
Supply Air Pressure Range		0 ~ 0.7MPa*	0 ~ 0.85MPa	0 ~ 0.7MPa	0 ~ 0.5MPa*	0 ~ 0.7MPa*
Max Discharge Pressure		0.7MPa	0.85MPa	0.7MPa	0.5MPa	0.7MPa
Materials	Wetted Body	Glass Filled PP, CFPVDF	Aluminium, SUS	Aluminium, SUS	PTFE	PTFE	PTFE
Materials	Diaphragm	CR, NBR, EPDM, FKM, TPEE, TPO		PTFE, One-piece PTFE	PTFE	PTFE	PTFE

*The maximum operating pressure depends on the liquid temperature. Please refer to operation manuals.

		Dampeners
Model Name		P25SWFR	P50SWFR
Connection Size	Liquid	Equivalent to Ferrule 1.5S	Equivalent to Ferrule 3.0S
Max Solid Size		8mm or less	12mm or less
Supply Air Pressure Range		0 ~ 0.7MPa*	0 ~ 0.7MPa*
Max dischage pressure		0.7Mpa	0.7Mpa
Materials	Wetted Body	SCS14	SUS316L
Materials	Diaphragm	One-piece PTFE	One-piece PTFE

YTS PRODUCT GUIDE

YTS PRODUCT GUIDE（PDF）
OPERATION MANUAL

P SERIES（PDF）
SWFR SERIES（PDF）

SERVICE BOOK

PARTS LIST

Plastic Dampeners

Up to Serial No. J799999

Connection Type	Size	Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)	W(PTFE&EPDM)
Rc Thread	10	P10P□ (PP)	P10PC 1D00092MP	P10PN 1D00093MP	N/A	N/A	P10PT 1D00094MP	P10PH 1D00095MP	P10PS 1D00096MP	P10PW 1D00126MP
	15	P15P□ (PP)	P15PC 1E00154MP	P15PN 1E00155MP	N/A	N/A	P15PT 1E00156MP	P15PH 1E00157MP	P15PS 1E00158MP	P15PW 1E00227MP
	15	P15V□ (PVDF)	N/A	N/A	N/A	N/A	P15VT 1E00159MP	N/A	N/A	P15VW 1E00228MP
	25	P25G□ (Glass Filled PP)	P25GC 1H00283MP	P25GN 1H00284MP	P25GE 1H00285MP	P25GV 1H00286MP	P25GT 1H00287MP	P25GH 1H00288MP	P25GS 1H00289MP	P25GW 1H00450MP
	25	P25V□ (PVDF)	N/A	N/A	N/A	N/A	P25VT 1H00292MP	N/A	N/A	P25VW 1H00451MP
	40	P40G□ (Glass Filled PP)	P40GC 1L00351MP	P40GN 1L00352MP	P40GE 1L00353MP	P40GV 1L00354MP	P40GT 1L00355MP	P40GH 1L00356MP	P40GS 1L00357MP	P40GW 1L00469MP
	40	P40V□ (PVDF)	N/A	N/A	N/A	N/A	P40VT 1L00360MP	N/A	N/A	P40VW 1L00470MP
	50	P50G□ (Glass Filled PP)	P50GC 1M00158MP	P50GN 1M00159MP	P50GE 1M00160MP	P50GV 1M00161MP	P50GT 1M00162MP	P50GH 1M00163MP	P50GS 1M00164MP	P50GW 1M00503MP
	50	P50V□ (PVDF)	N/A	N/A	N/A	N/A	P50VT 1M00167MP	N/A	N/A	P50VW 1M00504MP
NPT Thread	10	P10P□N (PP)	P10PCN 1D00092MN	P10PNN 1D00093MN	N/A	N/A	P10PTN 1D00094MN	P10PHN 1D00095MN	P10PSN 1D00096MN	P10PWN 1D00126MN
	15	P15P□N (PP)	P15PCN 1E00154MN	P15PNN 1E00155MN	N/A	N/A	P15PTN 1E00156MN	P15PHN 1E00157MN	P15PSN 1E00158MN	P15PWN 1E00227MN
	15	P15V□N (PVDF)	N/A	N/A	N/A	N/A	P15VTN 1E00159MN	N/A	N/A	P15VWN 1E00228MN
	25	P25G□N (Glass Filled PP)	P25GCN 1H00283MN	P25GNN 1H00284MN	P25GEN 1H00285MN	P25GVN 1H00286MN	P25GTN 1H00287MN	P25GHN 1H00288MN	P25GSN 1H00289MN	P25GWN 1H00450MN
	25	P25V□N (PVDF)	N/A	N/A	N/A	N/A	P25VTN 1H00292MN	N/A	N/A	P25VWN 1H00451MN
	40	P40G□N (Glass Filled PP)	P40GCN 1L00351MN	P40GNN 1L00352MN	P40GEN 1L00353MN	P40GVN 1L00354MN	P40GTN 1L00355MN	P40GHN 1L00356MN	P40GSN 1L00357MN	P40GWN 1L00469MN
	40	P40V□N (PVDF)	N/A	N/A	N/A	N/A	P40VTN 1L00360MN	N/A	N/A	P40VWN 1L00470MN
	50	P50G□N (Glass Filled PP)	P50GCN 1M00158MN	P50GNN 1M00159MN	P50GEN 1M00160MN	P50GVN 1M00161MN	P50GTN 1M00162MN	P50GHN 1M00163MN	P50GSN 1M00164MN	P50GWN 1M00503MN
	50	P50V□N (PVDF)	N/A	N/A	N/A	N/A	P50VTN 1M00167MN	N/A	N/A	P50VWN 1M00504MN

Serial No. J800000 and above

Connection Type	Size	Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)	W(PTFE&EPDM)
Rc Thread	10	P10P□ (PP)	P10PC 1D00133MP	P10PN 1D00134MP	N/A	N/A	P10PT 1D00135MP	P10PH 1D00136MP	P10PS 1D00137MP	P10PW 1D00138MP
	15	P15P□ (PP)	P15PC 1E00312MP	P15PN 1E00313MP	N/A	N/A	P15PT 1E00314MP	P15PH 1E00315MP	P15PS 1E00316MP	P15PW 1E00317MP
	15	P15V□ (PVDF)	N/A	N/A	N/A	N/A	P15VT 1E00318MP	N/A	N/A	P15VW 1E00319MP
	25	P25G□ (Glass Filled PP)	P25GC 1H00283MP	P25GN 1H00284MP	P25GE 1H00285MP	P25GV 1H00286MP	P25GT 1H00287MP	P25GH 1H00288MP	P25GS 1H00289MP	P25GW 1H00450MP
	25	P25V□ (PVDF)	N/A	N/A	N/A	N/A	P25VT 1H00292MP	N/A	N/A	P25VW 1H00451MP
	40	P40G□ (Glass Filled PP)	P40GC 1L00351MP	P40GN 1L00352MP	P40GE 1L00353MP	P40GV 1L00354MP	P40GT 1L00355MP	P40GH 1L00356MP	P40GS 1L00357MP	P40GW 1L00469MP
	40	P40V□ (PVDF)	N/A	N/A	N/A	N/A	P40VT 1L00360MP	N/A	N/A	P40VW 1L00470MP
	50	P50G□ (Glass Filled PP)	P50GC 1M00158MP	P50GN 1M00159MP	P50GE 1M00160MP	P50GV 1M00161MP	P50GT 1M00162MP	P50GH 1M00163MP	P50GS 1M00164MP	P50GW 1M00503MP
	50	P50V□ (PVDF)	N/A	N/A	N/A	N/A	P50VT 1M00167MP	N/A	N/A	P50VW 1M00504MP
NPT Thread	10	P10P□N (PP)	P10PCN 1D00133MN	P10PNN 1D00134MN	N/A	N/A	P10PTN 1D00135MN	P10PHN 1D00136MN	P10PSN 1D00137MN	P10PWN 1D00138MN
	15	P15P□N (PP)	P15PCN 1E00312MN	P15PNN 1E00313MN	N/A	N/A	P15PTN 1E00314MN	P15PHN 1E00315MN	P15PSN 1E00316MN	P15PWN 1E00317MN
	15	P15V□N (PVDF)	N/A	N/A	N/A	N/A	P15VTN 1E00318MN	N/A	N/A	P15VWN 1E00319MN
	25	P25G□N (Glass Filled PP)	P25GCN 1H00283MN	P25GNN 1H00284MN	P25GEN 1H00285MN	P25GVN 1H00286MN	P25GTN 1H00287MN	P25GHN 1H00288MN	P25GSN 1H00289MN	P25GWN 1H00450MN
	25	P25V□N (PVDF)	N/A	N/A	N/A	N/A	P25VTN 1H00292MN	N/A	N/A	P25VWN 1H00451MN
	40	P40G□N (Glass Filled PP)	P40GCN 1L00351MN	P40GNN 1L00352MN	P40GEN 1L00353MN	P40GVN 1L00354MN	P40GTN 1L00355MN	P40GHN 1L00356MN	P40GSN 1L00357MN	P40GWN 1L00469MN
	40	P40V□N (PVDF)	N/A	N/A	N/A	N/A	P40VTN 1L00360MN	N/A	N/A	P40VWN 1L00470MN
	50	P50G□N (Glass Filled PP)	P50GCN 1M00158MN	P50GNN 1M00159MN	P50GEN 1M00160MN	P50GVN 1M00161MN	P50GTN 1M00162MN	P50GHN 1M00163MN	P50GSN 1M00164MN	P50GWN 1M00503MN
	50	P50V□N (PVDF)	N/A	N/A	N/A	N/A	P50VTN 1M00167MN	N/A	N/A	P50VWN 1M00504MN

Metallic Dampeners

Up to Serial No. J799999

Connection Type	Size	Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)	W(PTFE&EPDM)
Rc Thread	10	P10A□ (AL)	P10AC 1D00082MP	P10AN 1D00083MP	N/A	N/A	P10AT 1D00084MP	P10AH 1D00085MP	P10AS 1D00086MP	P10AW 1D00124MP
	10	P10S□ (SUS)	P10SC 1D00087MP	P10SN 1D00088MP	N/A	N/A	P10ST 1D00089MP	P10SH 1D00090MP	P10SS 1D00091MP	P10SW 1D00125MP
	15	P15A□ (AL)	P15AC 1E00144MP	P15AN 1E00145MP	N/A	N/A	P15AT 1E00146MP	P15AH 1E00147MP	P15AS 1E00148MP	P15AW 1E00225MP
	15	P15S□ (SUS)	P15SC 1E00149MP	P15SN 1E00150MP	N/A	N/A	P15ST 1E00151MP	P15SH 1E00152MP	P15SS 1E00153MP	P15SW 1E00226MP
	25	P25A□ (AL)	P25AC 1H00262MP	P25AN 1H00263MP	P25AE 1H00264MP	P25AV 1H00265MP	P25AT 1H00266MP	P25AH 1H00267MP	P25AS 1H00268MP	P25AW 1H00448MP
	25	P25S□ (SUS)	P25SC 1H00269MP	P25SN 1H00270MP	P25SE 1H00271MP	P25SV 1H00272MP	P25ST 1H00273MP	P25SH 1H00274MP	P25SS 1H00275MP	P25SW 1H00449MP
	40	P40A□ (AL)	P40AC 1L00337MP	P40AN 1L00338MP	P40AE 1L00339MP	P40AV 1L00340MP	P40AT 1L00341MP	P40AH 1L00342MP	P40AS 1L00343MP	P40AW 1L00467MP
	40	P40S□ (SUS)	P40SC 1L00344MP	P40SN 1L00345MP	P40SE 1L00346MP	P40SV 1L00347MP	P40ST 1L00348MP	P40SH 1L00349MP	P40SS 1L00350MP	P40SW 1L00468MP
	50	P50A□ (AL)	P50AC 1M00137MP	P50AN 1M00138MP	P50AE 1M00139MP	P50AV 1M00140MP	P50AT 1M00141MP	P50AH 1M00142MP	P50AS 1M00143MP	P50AW 1M00501MP
	50	P50S□ (SUS)	P50SC 1M00144MP	P50SN 1M00145MP	P50SE 1M00146MP	P50SV 1M00147MP	P50ST 1M00148MP	P50SH 1M00149MP	P50SS 1M00150MP	P50SW 1M00502MP
NPT Thread	10	P10A□N (AL)	P10ACN 1D00082MN	P10ANN 1D00083MN	N/A	N/A	P10ATN 1D00084MN	P10AHN 1D00085MN	P10ASN 1D00086MN	P10AWN 1D00124MN
	10	P10S□N (SUS)	P10SCN 1D00087MN	P10SNN 1D00088MN	N/A	N/A	P10STN 1D00089MN	P10SHN 1D00090MN	P10SSN 1D00091MN	P10SWN 1D00125MN
	15	P15A□N (AL)	P15ACN 1E00144MN	P15ANN 1E00145MN	N/A	N/A	P15ATN 1E00146MN	P15AHN 1E00147MN	P15ASN 1E00148MN	P15AWN 1E00225MN
	15	P15S□N (SUS)	P15SCN 1E00149MN	P15SNN 1E00150MN	N/A	N/A	P15STN 1E00151MN	P15SHN 1E00152MN	P15SSN 1E00153MN	P15SWN 1E00226MN
	25	P25A□N (AL)	P25ACN 1H00262MN	P25ANN 1H00263MN	P25AEN 1H00264MN	P25AVN 1H00265MN	P25ATN 1H00266MN	P25AHN 1H00267MN	P25ASN 1H00268MN	P25AWN 1H00448MN
	25	P25S□N (SUS)	P25SCN 1H00269MN	P25SNN 1H00270MN	P25SEN 1H00271MN	P25SVN 1H00272MN	P25STN 1H00273MN	P25SHN 1H00274MN	P25SSN 1H00275MN	P25SWN 1H00449MN
	40	P40A□N (AL)	P40ACN 1L00337MN	P40ANN 1L00338MN	P40AEN 1L00339MN	P40AVN 1L00340MN	P40ATN 1L00341MN	P40AHN 1L00342MN	P40ASN 1L00343MN	P40AWN 1L00467MN
	40	P40S□N (SUS)	P40SCN 1L00344MN	P40SNN 1L00345MN	P40SEN 1L00346MN	P40SVN 1L00347MN	P40STN 1L00348MN	P40SHN 1L00349MN	P40SSN 1L00350MN	P40SWN 1L00468MN
	50	P50A□N (AL)	P50ACN 1M00137MN	P50ANN 1M00138MN	P50AEN 1M00139MN	P50AVN 1M00140MN	P50ATN 1M00141MN	P50AHN 1M00142MN	P50ASN 1M00143MN	P50AWN 1M00501MN
	50	P50S□N (SUS)	P50SCN 1M00144MN	P50SNN 1M00145MN	P50SEN 1M00146MN	P50SVN 1M00147MN	P50STN 1M00148MN	P50SHN 1M00149MN	P50SSN 1M00150MN	P50SWN 1M00502MN

Serial No. J800000 and above

Connection Type	Size	Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)	W(PTFE&EPDM)
Rc Thread	10	P10A□ (AL)	P10AC 1D00082MP	P10AN 1D00083MP	N/A	N/A	P10AT 1D00084MP	P10AH 1D00085MP	P10AS 1D00086MP	P10AW 1D00124MP
	10	P10S□ (SUS)	P10SC 1D00087MP	P10SN 1D00088MP	N/A	N/A	P10ST 1D00089MP	P10SH 1D00090MP	P10SS 1D00091MP	P10SW 1D00125MP
	15	P15A□ (AL)	P15AC 1E00300MP	P15AN 1E00301MP	N/A	N/A	P15AT 1E00302MP	P15AH 1E00303MP	P15AS 1E00304MP	P15AW 1E00305MP
	15	P15S□ (SUS)	P15SC 1E00306MP	P15SN 1E00307MP	N/A	N/A	P15ST 1E00308MP	P15SH 1E00309MP	P15SS 1E00310MP	P15SW 1E00311MP
	25	P25A□ (AL)	P25AC 1H00545MP	P25AN 1H00546MP	P25AE 1H00547MP	P25AV 1H00548MP	P25AT 1H00549MP	P25AH 1H00550MP	P25AS 1H00551MP	P25AW 1H00552MP
	25	P25S□ (SUS)	P25SC 1H00553MP	P25SN 1H00554MP	P25SE 1H00555MP	P25SV 1H00556MP	P25ST 1H00557MP	P25SH 1H00558MP	P25SS 1H00559MP	P25SW 1H00560MP
	40	P40A□ (AL)	P40AC 1L00583MP	P40AN 1L00584MP	P40AE 1L00585MP	P40AV 1L00586MP	P40AT 1L00587MP	P40AH 1L00588MP	P40AS 1L00589MP	P40AW 1L00590MP
	40	P40S□ (SUS)	P40SC 1L00591MP	P40SN 1L00592MP	P40SE 1L00593MP	P40SV 1L00594MP	P40ST 1L00595MP	P40SH 1L00596MP	P40SS 1L00597MP	P40SW 1L00598MP
	50	P50A□ (AL)	P50AC 1M00619MP	P50AN 1M00620MP	P50AE 1M00621MP	P50AV 1M00622MP	P50AT 1M00623MP	P50AH 1M00624MP	P50AS 1M00625MP	P50AW 1M00626MP
	50	P50S□ (SUS)	P50SC 1M00627MP	P50SN 1M00628MP	P50SE 1M00629MP	P50SV 1M00630MP	P50ST 1M00631MP	P50SH 1M00632MP	P50SS 1M00633MP	P50SW 1M00634MP
NPT Thread	10	P10A□N (AL)	P10ACN 1D00082MN	P10ANN 1D00083MN	N/A	N/A	P10ATN 1D00084MN	P10AHN 1D00085MN	P10ASN 1D00086MN	P10AWN 1D00124MN
	10	P10S□N (SUS)	P10SCN 1D00087MN	P10SNN 1D00088MN	N/A	N/A	P10STN 1D00089MN	P10SHN 1D00090MN	P10SSN 1D00091MN	P10SWN 1D00125MN
	15	P15A□N (AL)	P15ACN 1E00300MN	P15ANN 1E00301MN	N/A	N/A	P15ATN 1E00302MN	P15AHN 1E00303MN	P15ASN 1E00304MN	P15AWN 1E00305MN
	15	P15S□N (SUS)	P15SCN 1E00306MN	P15SNN 1E00307MN	N/A	N/A	P15STN 1E00308MN	P15SHN 1E00309MN	P15SSN 1E00310MN	P15SWN 1E00311MN
	25	P25A□N (AL)	P25ACN 1H00545MN	P25ANN 1H00546MN	P25AEN 1H00547MN	P25AVN 1H00548MN	P25ATN 1H00549MN	P25AHN 1H00550MN	P25ASN 1H00551MN	P25AWN 1H00552MN
	25	P25S□N (SUS)	P25SCN 1H00553MN	P25SNN 1H00554MN	P25SEN 1H00555MN	P25SVN 1H00556MN	P25STN 1H00557MN	P25SHN 1H00558MN	P25SSN 1H00559MN	P25SWN 1H00560MN
	40	P40A□N (AL)	P40ACN 1L00583MN	P40ANN 1L00584MN	P40AEN 1L00585MN	P40AVN 1L00586MN	P40ATN 1L00587MN	P40AHN 1L00588MN	P40ASN 1L00589MN	P40AWN 1L00590MN
	40	P40S□N (SUS)	P40SCN 1L00591MN	P40SNN 1L00592MN	P40SEN 1L00593MN	P40SVN 1L00594MN	P40STN 1L00595MN	P40SHN 1L00596MN	P40SSN 1L00597MN	P40SWN 1L00598MN
	50	P50A□N (AL)	P50ACN 1M00619MN	P50ANN 1M00620MN	P50AEN 1M00621MN	P50AVN 1M00622MN	P50ATN 1M00623MN	P50AHN 1M00624MN	P50ASN 1M00625MN	P50AWN 1M00626MN
	50	P50S□N (SUS)	P50SCN 1M00627MN	P50SNN 1M00628MN	P50SEN 1M00629MN	P50SVN 1M00630MN	P50STN 1M00631MN	P50SHN 1M00632MN	P50SSN 1M00633MN	P50SWN 1M00634MN

PTFE Dampeners

Connection Type		10	25	40
Rc	Thread	P10HT 1D00097MP	P25HT 1H00309MP	P40HT 1L00031MP
NPT	Thread	P10HTN 1D00097MN	P25HTN 1H00309MN	P40HTN 1L00031MN

SWFR Dampeners

Connection Type		Equivalent to Ferrule 1.5S	Equivalent to Ferrule 3.0S
Air Inlet Rc	Ferrule	P25SWFR 1H00425MP	P50SWFR 1M00424MP
Air Inlet NPT	Ferrule	P25SWFR 1H00425MN	P50SWFR 1M00424MN

DIMENSIONAL DRAWINGS

Dampeners		AL	PP	SUS	CFPVDF
Rc	P 10	10A	10P	10S	N/A
	P 15	15A	15P	15S	15V
	P 25	25A	25G	25S	25V

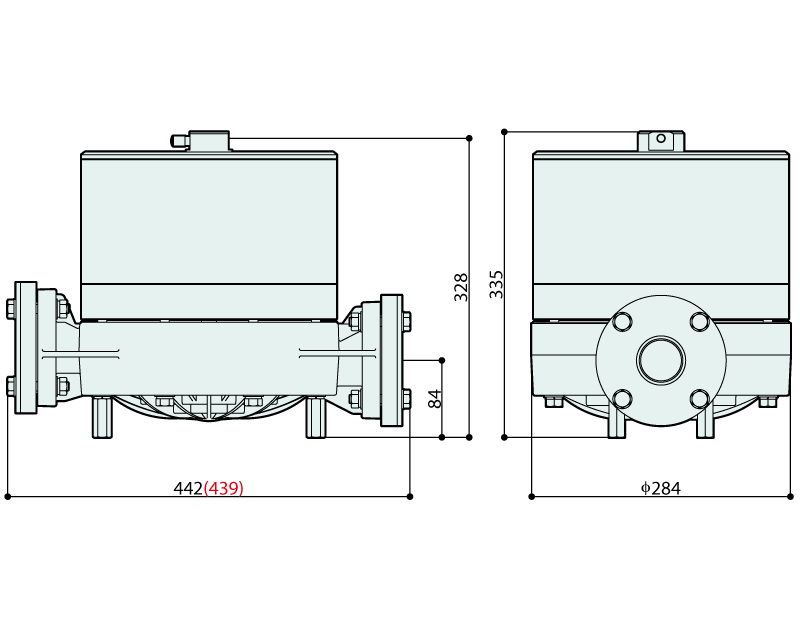

	P 40	40A	40G	40S	40V
	P 50	50A	50G	50S	50V
NPT	P 10	10A□N	10P□N	10S□N	N/A
	P 15	15A□N	15P□N	15S□N	15V□N
	P 25	25A□N	25G□N	25S□N	25V□N
	P 40	40A□N	40G□N	40S□N	40V□N
	P 50	50A□N	50G□N	50S□N	50V□N

PTFE Dampeners
Rc	10HT	25HT	40HT
NPT	10HTN	25HTN	40HTN

SWFR Dampeners

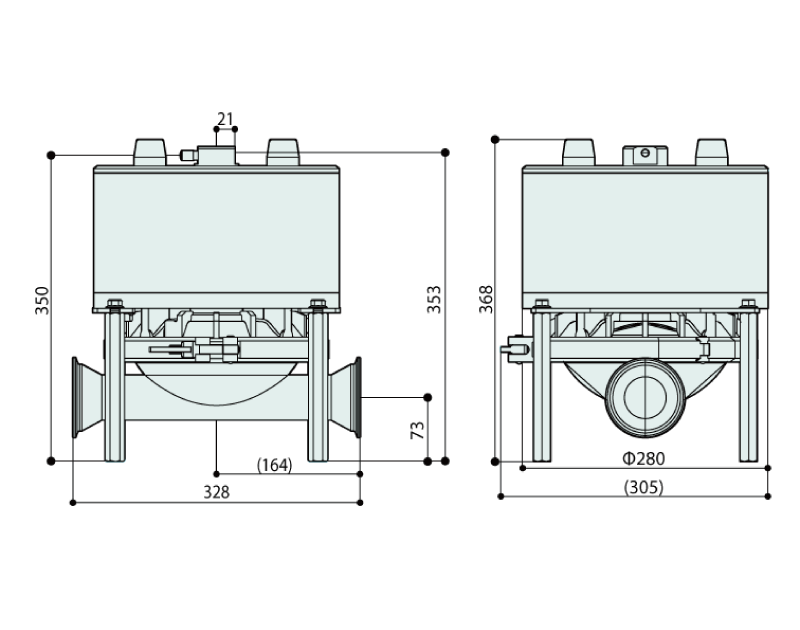

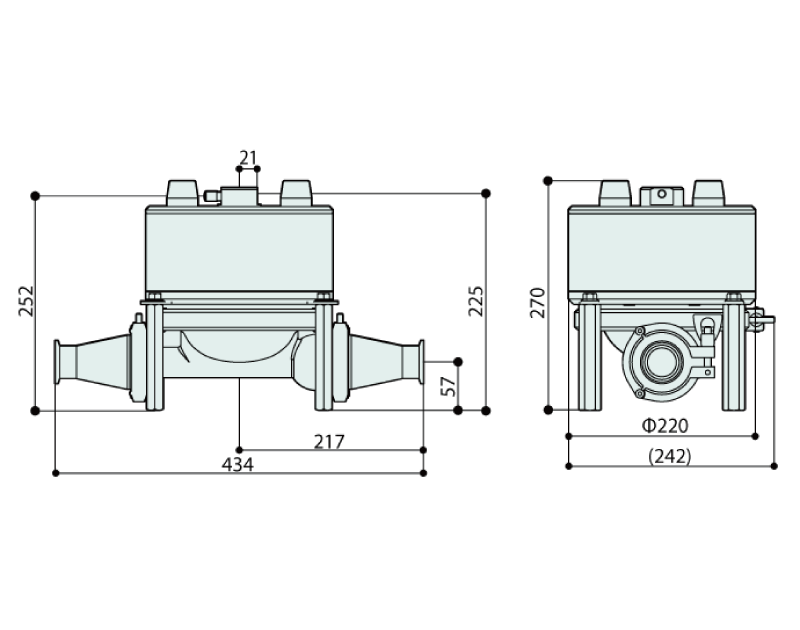

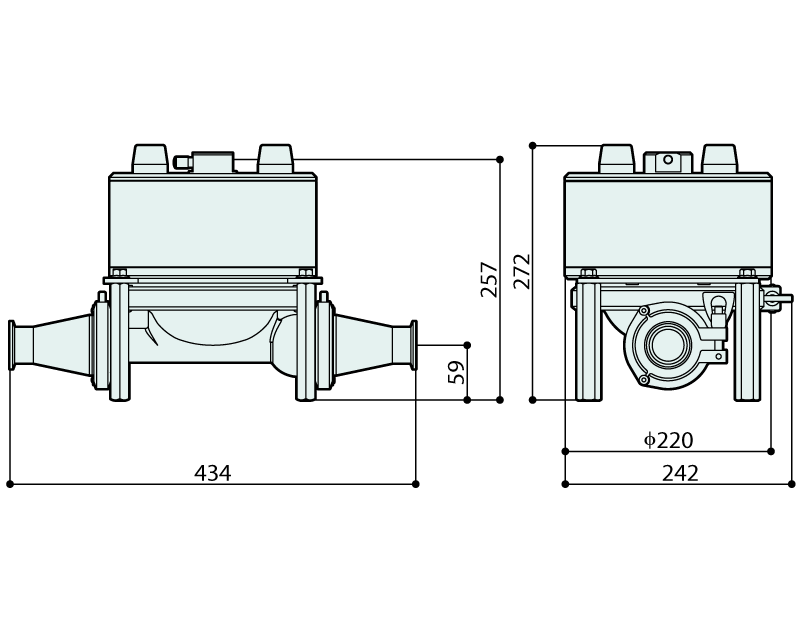

Air Inlet Rc	25SWFR	50SWFR
Air Inlet NPT	25SWFR	50SWFR

Pulsation Dampeners

⅜”, ½”, 1″, 1½”, 2″ Liquid connections

Plastic Dampeners

15P□

25G□

50V□

Metallic Dampeners

10S□

25A□

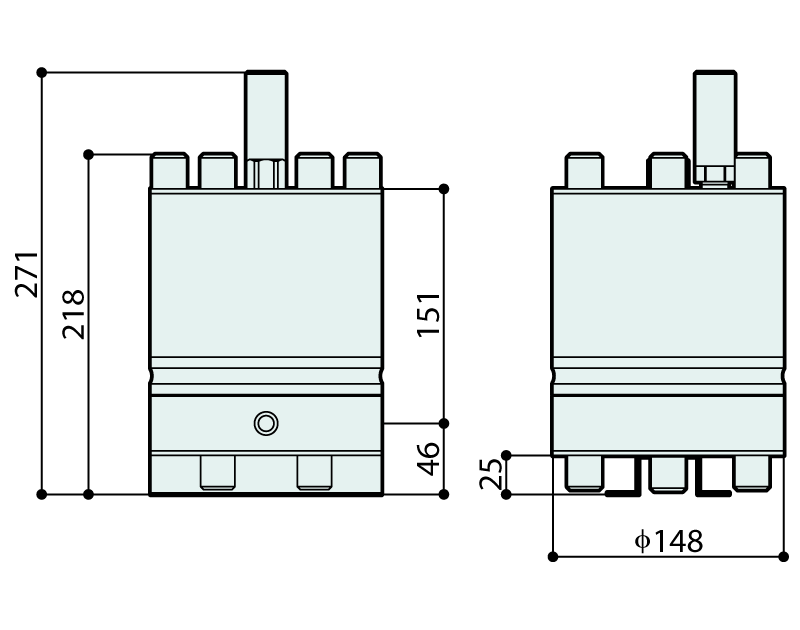

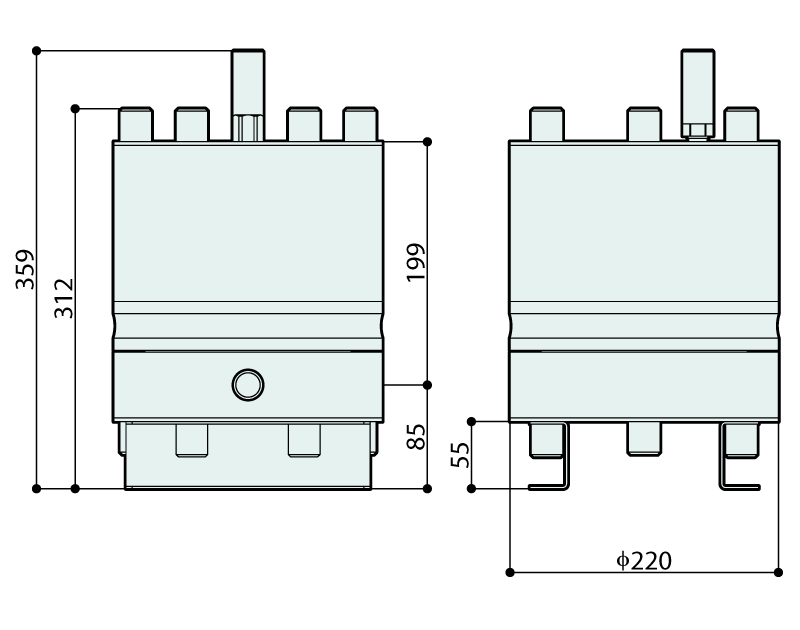

PTFE Dampeners

10HT

40HT
