Pulsation Dampeners

Plastic Dampeners

P/G/V

DAMPER OPERATION MANUAL

SERVICE BOOK

Parts List Table up to Serial No. J799999

Connection Type	Size	Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)	W(PTFE&EPDM)
Rc Thread	10	P10□ (PP)	P10PC 1D00092MP	P10PN 1D00093MP	N/A	N/A	P10PT 1D00094MP	P10PH 1D00095MP	P10PS 1D00096MP	P10PW 1D00126MP
	15	P15P□ (PP)	P15PC 1E00154MP	P15PN 1E00155MP	N/A	N/A	P15PT 1E00156MP	P15PH 1E00157MP	P15PS 1E00158MP	P15PW 1E00227MP
	15	P15VT (PVDF)	N/A	N/A	N/A	N/A	P15VT 1E00159MP	N/A	N/A	P15VW 1E00228MP
	25	P25G□ (Glass Filled PP)	P25GC 1H00283MP	P25GN 1H00284MP	P25GE 1H00285MP	P25GV 1H00286MP	P25GT 1H00287MP	P25GH 1H00288MP	P25GS 1H00289MP	P25GW 1H00450MP
	25	P25VT (PVDF)	N/A	N/A	N/A	N/A	P25VT 1H00292MP	N/A	N/A	P25VW 1H00451MP
	40	P40G□ Glass Filled PP)	P40GC 1L00351MP	P40GN 1L00352MP	P40GE 1L00353MP	P40GV 1L00354MP	P40GT 1L00355MP	P40GH 1L00356MP	P40GS 1L00357MP	P40GW 1L00469MP
	40	P40VT (PVDF)	N/A	N/A	N/A	N/A	P40VT 1L00360MP	N/A	N/A	P40VW 1L00470MP
	50	P50G□ (Glass Filled PP)	P50GC 1M00158MP	P50GN 1M00159MP	P50GE 1M00160MP	P50GV 1M00161MP	P50GT 1M00162MP	P50GH 1M00163MP	P50GS 1M00164MP	P50GW 1M00503MP
	50	P50VT (PVDF)	N/A	N/A	N/A	N/A	P50VT 1M00167MP	N/A	N/A	P50VW 1M00504MP
NPT Thread	10	P10□N (PP)	P10PCN 1D00092MN	P10PNN 1D00093MN	N/A	N/A	P10PTN 1D00094MN	P10PHN 1D00095MN	P10PSN 1D00096MN	P10PWN 1D00126MN
	15	P15P□N (PP)	P15PCN 1E00154MN	P15PNN 1E00155MN	N/A	N/A	P15PTN 1E00156MN	P15PHN 1E00157MN	P15PSN 1E00158MN	P15PWN 1E00227MN
	15	P15VTN (PVDF)	N/A	N/A	N/A	N/A	P15VTN 1E00159MN	N/A	N/A	P15VWN 1E00228MN
	25	P25G□N (Glass Filled PP)	P25GCN 1H00283MN	P25GNN 1H00284MN	P25GEN 1H00285MN	P25GVN 1H00286MN	P25GTN 1H00287MN	P25GHN 1H00288MN	P25GSN 1H00289MN	P25GWN 1H00450MN
	25	P25VTN (PVDF)	N/A	N/A	N/A	N/A	P25VTN 1H00292MN	N/A	N/A	P25VWN 1H00451MN
	40	P40G□N Glass Filled PP)	P40GCN 1L00351MN	P40GNN 1L00352MN	P40GEN 1L00353MN	P40GVN 1L00354MN	P40GTN 1L00355MN	P40GHN 1L00356MN	P40GSN 1L00357MN	P40GWN 1L00469MN
	40	P40VTN (PVDF)	N/A	N/A	N/A	N/A	P40VTN 1L00360MN	N/A	N/A	P40VWN 1L00470MN
	50	P50G□N (Glass Filled PP)	P50GCN 1M00158MN	P50GNN 1M00159MN	P50GEN 1M00160MN	P50GVN 1M00161MN	P50GTN 1M00162MN	P50GHN 1M00163MN	P50GSN 1M00164MN	P50GWN 1M00503MN
	50	P50VTN (PVDF)	N/A	N/A	N/A	N/A	P50VTN 1M00167MN	N/A	N/A	P50VWN 1M00504MN

Parts List Table Serial No. J800000 and above

Connection Type	Size	Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)	W(PTFE&EPDM)
Rc Thread	10	P10P□ (PP)	P10PC 1D00133MP	P10PN 1D00134MP	N/A	N/A	P10PT 1D00135MP	P10PH 1D00136MP	P10PS 1D00137MP	P10PW 1D00138MP
	15	P15P□ (PP)	P15PC 1E00312MP	P15PN 1E00313MP	N/A	N/A	P15PT 1E00314MP	P15PH 1E00315MP	P15PS 1E00316MP	P15PW 1E00317MP
	15	P15V□ (PVDF)	N/A	N/A	N/A	N/A	P15VT 1E00318MP	N/A	N/A	P15VW 1E00319MP
	25	P25G□ (Glass Filled PP)	P25GC 1H00283MP	P25GN 1H00284MP	P25GE 1H00285MP	P25GV 1H00286MP	P25GT 1H00287MP	P25GH 1H00288MP	P25GS 1H00289MP	P25GW 1H00450MP
	25	P25V□ (PVDF)	N/A	N/A	N/A	N/A	P25VT 1H00292MP	N/A	N/A	P25VW 1H00451MP
	40	P40G□ (Glass Filled PP)	P40GC 1L00351MP	P40GN 1L00352MP	P40GE 1L00353MP	P40GV 1L00354MP	P40GT 1L00355MP	P40GH 1L00356MP	P40GS 1L00357MP	P40GW 1L00469MP
	40	P40V□ (PVDF)	N/A	N/A	N/A	N/A	P40VT 1L00360MP	N/A	N/A	P40VW 1L00470MP
	50	P50G□ (Glass Filled PP)	P50GC 1M00158MP	P50GN 1M00159MP	P50GE 1M00160MP	P50GV 1M00161MP	P50GT 1M00162MP	P50GH 1M00163MP	P50GS 1M00164MP	P50GW 1M00503MP
	50	P50V□ (PVDF)	N/A	N/A	N/A	N/A	P50VT 1M00167MP	N/A	N/A	P50VW 1M00504MP
NPT Thread	10	P10P□N (PP)	P10PCN 1D00133MN	P10PNN 1D00134MN	N/A	N/A	P10PTN 1D00135MN	P10PHN 1D00136MN	P10PSN 1D00137MN	P10PWN 1D00138MN
	15	P15P□N (PP)	P15PCN 1E00312MN	P15PNN 1E00313MN	N/A	N/A	P15PTN 1E00314MN	P15PHN 1E00315MN	P15PSN 1E00316MN	P15PWN 1E00317MN
	15	P15V□N (PVDF)	N/A	N/A	N/A	N/A	P15VTN 1E00318MN	N/A	N/A	P15VWN 1E00319MN
	25	P25G□N (Glass Filled PP)	P25GCN 1H00283MN	P25GNN 1H00284MN	P25GEN 1H00285MN	P25GVN 1H00286MN	P25GTN 1H00287MN	P25GHN 1H00288MN	P25GSN 1H00289MN	P25GWN 1H00450MN
	25	P25V□N (PVDF)	N/A	N/A	N/A	N/A	P25VTN 1H00292MN	N/A	N/A	P25VWN 1H00451MN
	40	P40G□N (Glass Filled PP)	P40GCN 1L00351MN	P40GNN 1L00352MN	P40GEN 1L00353MN	P40GVN 1L00354MN	P40GTN 1L00355MN	P40GHN 1L00356MN	P40GSN 1L00357MN	P40GWN 1L00469MN
	40	P40V□N (PVDF)	N/A	N/A	N/A	N/A	P40VTN 1L00360MN	N/A	N/A	P40VWN 1L00470MN
	50	P50G□N (Glass Filled PP)	P50GCN 1M00158MN	P50GNN 1M00159MN	P50GEN 1M00160MN	P50GVN 1M00161MN	P50GTN 1M00162MN	P50GHN 1M00163MN	P50GSN 1M00164MN	P50GWN 1M00503MN
	50	P50V□N (PVDF)	N/A	N/A	N/A	N/A	P50VTN 1M00167MN	N/A	N/A	P50VWN 1M00504MN

DIMENSIONAL DRAWINGS

READ ME FIRST

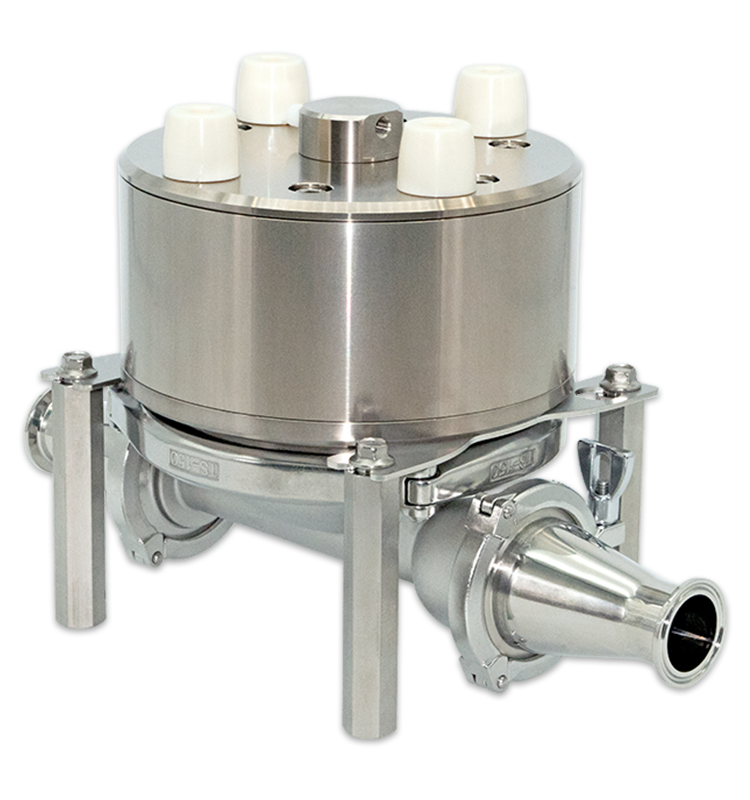

Metallic Dampeners

A/S

DAMPER OPERATION MANUAL

SERVICE BOOK

Parts List Table up to Serial No. J799999

Connection Type	Size	Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)	W(PTFE&EPDM)
Rc Thread	10	P10A□ (AL)	P10AC 1D00082MP	P10AN 1D00083MP	N/A	N/A	P10AT 1D00084MP	P10AH 1D00085MP	P10AS 1D00086MP	P10AW 1D00124MP
	10	P10S□ (SUS)	P10SC 1D00087MP	P10SN 1D00088MP	N/A	N/A	P10ST 1D00089MP	P10SH 1D00090MP	P10SS 1D00091MP	P10SW 1D00125MP
	15	P15A□ (AL)	P15AC 1E00144MP	P15AN 1E00145MP	N/A	N/A	P15AT 1E00146MP	P15AH 1E00147MP	P15AS 1E00148MP	P15AW 1E00225MP
	15	P15S□ (SUS)	P15SC 1E00149MP	P15SN 1E00150MP	N/A	N/A	P15ST 1E00151MP	P15SH 1E00152MP	P15SS 1E00153MP	P15SW 1E00226MP
	25	P25A□ (AL)	P25AC 1H00262MP	P25AN 1H00263MP	P25AE 1H00264MP	P25AV 1H00265MP	P25AT 1H00266MP	P25AH 1H00267MP	P25AS 1H00268MP	P25AW 1H00448MP
	25	P25S□ (SUS)	P25SC 1H00269MP	P25SN 1H00270MP	P25SE 1H00271MP	P25SV 1H00272MP	P25ST 1H00273MP	P25SH 1H00274MP	P25SS 1H00275MP	P25SW 1H00449MP
	40	P40A□ (AL)	P40AC 1L00337MP	P40AN 1L00338MP	P40AE 1L00339MP	P40AV 1L00340MP	P40AT 1L00341MP	P40AH 1L00342MP	P40AS 1L00343MP	P40AW 1L00467MP
	40	P40S□ (SUS)	P40SC 1L00344MP	P40SN 1L00345MP	P40SE 1L00346MP	P40SV 1L00347MP	P40ST 1L00348MP	P40SH 1L00349MP	P40SS 1L00350MP	P40SW 1L00468MP
	50	P50A□ (AL)	P50AC 1M00137MP	P50AN 1M00138MP	P50AE 1M00139MP	P50AV 1M00140MP	P50AT 1M00141MP	P50AH 1M00142MP	P50AS 1M00143MP	P50AW 1M00501MP
	50	P50S□ (SUS)	P50SC 1M00144MP	P50SN 1M00145MP	P50SE 1M00146MP	P50SV 1M00147MP	P50ST 1M00148MP	P50SH 1M00149MP	P50SS 1M00150MP	P50SW 1M00502MP
NPT Thread	10	P10A□N (AL)	P10ACN 1D00082MN	P10ANN 1D00083MN	N/A	N/A	P10ATN 1D00084MN	P10AHN 1D00085MN	P10ASN 1D00086MN	P10AWN 1D00124MN
	10	P10S□N (SUS)	P10SCN 1D00087MN	P10SNN 1D00088MN	N/A	N/A	P10STN 1D00089MN	P10SHN 1D00090MN	P10SSN 1D00091MN	P10SWN1D00125MN
	15	P15A□N (AL)	P15ACN 1E00144MN	P15ANN 1E00145MN	N/A	N/A	P15ATN 1E00146MN	P15AHN 1E00147MN	P15ASN 1E00148MN	P15AWN 1E00225MN
	15	P15S□N (SUS)	P15SCN 1E00149MN	P15SNN 1E00150MN	N/A	N/A	P15STN 1E00151MN	P15SHN 1E00152MN	P15SSN 1E00153MN	P15SWN 1E00226MN
	25	P25A□N (AL)	P25ACN 1H00262MN	P25ANN 1H00263MN	P25AEN 1H00264MN	P25AVN 1H00265MN	P25ATN 1H00266MN	P25AHN 1H00267MN	P25ASN 1H00268MN	P25AWN 1H00448MN
	25	P25S□N (SUS)	P25SCN 1H00269MN	P25SNN 1H00270MN	P25SEN 1H00271MN	P25SVN 1H00272MN	P25STN 1H00273MN	P25SHN 1H00274MN	P25SSN 1H00275MN	P25SWN 1H00449MN
	40	P40A□N (AL)	P40ACN 1L00337MN	P40ANN 1L00338MN	P40AEN 1L00339MN	P40AVN 1L00340MN	P40ATN 1L00341MN	P40AHN 1L00342MN	P40ASN 1L00343MN	P40AWN 1L00467MN
	40	P40S□N (SUS)	P40SCN 1L00344MN	P40SNN 1L00345MN	P40SEN 1L00346MN	P40SVN 1L00347MN	P40STN 1L00348MN	P40SHN 1L00349MN	P40SSN 1L00350MN	P40SWN 1L00468MN
	50	P50A□N (AL)	P50ACN 1M00137MN	P50ANN 1M00138MN	P50AEN 1M00139MN	P50AVN 1M00140MN	P50ATN 1M00141MN	P50AHN 1M00142MN	P50ASN 1M00143MN	P50AWN 1M00501MN
	50	P50S□N (SUS)	P50SCN 1M00144MN	P50SNN 1M00145MN	P50SEN 1M00146MN	P50SVN 1M00147MN	P50STN 1M00148MN	P50SHN 1M00149MN	P50SSN 1M00150MN	P50SWN 1M00502MN

Parts List Table Serial No. J800000 and above

Connection Type	Size	Model / Diaphragm	C (CR)	N (NBR)	E (EPDM)	V (FKM)	T (PTFE)	H (TPEE)	S (TPO)	W(PTFE&EPDM)
Rc Thread	10	P10A□ (AL)	P10AC 1D00082MP	P10AN 1D00083MP	N/A	N/A	P10AT 1D00084MP	P10AH 1D00085MP	P10AS 1D00086MP	P10AW 1D00124MP
	10	P10S□ (SUS)	P10SC 1D00087MP	P10SN 1D00088MP	N/A	N/A	P10ST 1D00089MP	P10SH 1D00090MP	P10SS 1D00091MP	P10SW 1D00125MP
	15	P15A□ (AL)	P15AC 1E00300MP	P15AN 1E00301MP	N/A	N/A	P15AT 1E00302MP	P15AH 1E00303MP	P15AS 1E00304MP	P15AW 1E00305MP
	15	P15S□ (SUS)	P15SC 1E00306MP	P15SN 1E00307MP	N/A	N/A	P15ST 1E00308MP	P15SH 1E00309MP	P15SS 1E00310MP	P15SW 1E00311MP
	25	P25A□ (AL)	P25AC 1H00545MP	P25AN 1H00546MP	P25AE 1H00547MP	P25AV 1H00548MP	P25AT 1H00549MP	P25AH 1H00550MP	P25AS 1H00551MP	P25AW 1H00552MP
	25	P25S□ (SUS)	P25SC 1H00553MP	P25SN 1H00554MP	P25SE 1H00555MP	P25SV 1H00556MP	P25ST 1H00557MP	P25SH 1H00558MP	P25SS 1H00559MP	P25SW 1H00560MP
	40	P40A□ (AL)	P40AC 1L00583MP	P40AN 1L00584MP	P40AE 1L00585MP	P40AV 1L00586MP	P40AT 1L00587MP	P40AH 1L00588MP	P40AS 1L00589MP	P40AW 1L00590MP
	40	P40S□ (SUS)	P40SC 1L00591MP	P40SN 1L00592MP	P40SE 1L00593MP	P40SV 1L00594MP	P40ST 1L00595MP	P40SH 1L00596MP	P40SS 1L00597MP	P40SW 1L00598MP
	50	P50A□ (AL)	P50AC 1M00619MP	P50AN 1M00620MP	P50AE 1M00621MP	P50AV 1M00622MP	P50AT 1M00623MP	P50AH 1M00624MP	P50AS 1M00625MP	P50AW 1M00626MP
	50	P50S□ (SUS)	P50SC 1M00627MP	P50SN 1M00628MP	P50SE 1M00629MP	P50SV 1M00630MP	P50ST 1M00631MP	P50SH 1M00632MP	P50SS 1M00633MP	P50SW 1M00634MP
NPT Thread	10	P10A□N (AL)	P10ACN 1D00082MN	P10ANN 1D00083MN	N/A	N/A	P10ATN 1D00084MN	P10AHN 1D00085MN	P10ASN 1D00086MN	P10AWN 1D00124MN
	10	P10S□N (SUS)	P10SCN 1D00087MN	P10SNN 1D00088MN	N/A	N/A	P10STN 1D00089MN	P10SHN 1D00090MN	P10SSN 1D00091MN	P10SWN 1D00125MN
	15	P15A□N (AL)	P15ACN 1E00300MN	P15ANN 1E00301MN	N/A	N/A	P15ATN 1E00302MN	P15AHN 1E00303MN	P15ASN 1E00304MN	P15AWN 1E00305MN
	15	P15S□N (SUS)	P15SCN 1E00306MN	P15SNN 1E00307MN	N/A	N/A	P15STN 1E00308MN	P15SHN 1E00309MN	P15SSN 1E00310MN	P15SWN 1E00311MN
	25	P25A□N (AL)	P25ACN 1H00545MN	P25ANN 1H00546MN	P25AEN 1H00547MN	P25AVN 1H00548MN	P25ATN 1H00549MN	P25AHN 1H00550MN	P25ASN 1H00551MN	P25AWN 1H00552MN
	25	P25S□N (SUS)	P25SCN 1H00553MN	P25SNN 1H00554MN	P25SEN 1H00555MN	P25SVN 1H00556MN	P25STN 1H00557MN	P25SHN 1H00558MN	P25SSN 1H00559MN	P25SWN 1H00560MN
	40	P40A□N (AL)	P40ACN 1L00583MN	P40ANN 1L00584MN	P40AEN 1L00585MN	P40AVN 1L00586MN	P40ATN 1L00587MN	P40AHN 1L00588MN	P40ASN 1L00589MN	P40AWN 1L00590MN
	40	P40S□N (SUS)	P40SCN 1L00591MN	P40SNN 1L00592MN	P40SEN 1L00593MN	P40SVN 1L00594MN	P40STN 1L00595MN	P40SHN 1L00596MN	P40SSN 1L00597MN	P40SWN 1L00598MN
	50	P50A□N (AL)	P50ACN 1M00619MN	P50ANN 1M00620MN	P50AEN 1M00621MN	P50AVN 1M00622MN	P50ATN 1M00623MN	P50AHN 1M00624MN	P50ASN 1M00625MN	P50AWN 1M00626MN
	50	P50S□N (SUS)	P50SCN 1M00627MN	P50SNN 1M00628MN	P50SEN 1M00629MN	P50SVN 1M00630MN	P50STN 1M00631MN	P50SHN 1M00632MN	P50SSN 1M00633MN	P50SWN 1M00634MN
